Product Summary
The MAX7219ENG+ is a compact, serial input/output common-cathode display driver that interface microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. The MAX7219ENG+ also allows the user to select code-B decoding or no-decode for each digit. The device includes a 150μA low-power shutdown mode, analog and digital brightness control, a scanlimit register that allows the user to display from 1 to 8 digits, and a test mode that forces all LEDs on.
Parametrics
Absolute maximum ratings: (1)Voltage (with respect to GND): V+: -0.3V to 6V; DIN, CLK, LOAD, CS: -0.3V to 6V; All Other Pins: -0.3V to (V+ + 0.3V); (2)Current: DIG 0–DIG 7 Sink Current: 500mA; SEG A–G, DP Source Current: 100mA; (3)Continuous Power Dissipation (TA = +85℃)Narrow Plastic DIP (derate 13.3mW/℃; (4)above +70℃): 1066mW; (5)Wide SO (derate 11.8mW/℃ above +70℃): 941mW; (6)Narrow CERDIP (derate 12.5mW/℃ above +70℃): 1000mW; (7)Operating Temperature Ranges (TMIN to TMAX): MAX7219E_G/MAX7221E_G : -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10s): +300℃.
Features
Features: (1)10MHz Serial Interface; (2)Individual LED Segment Control; (3)Decode/No-Decode Digit Selection; (4)150μA Low-Power Shutdown (Data Retained); (5)Digital and Analog Brightness Control; (6)Display Blanked on Power-Up; (7)Drive Common-Cathode LED Display; (8)Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221); (9)SPI, QSPI, MICROWIRE Serial Interface (MAX7221); (10)24-Pin DIP and SO Packages.

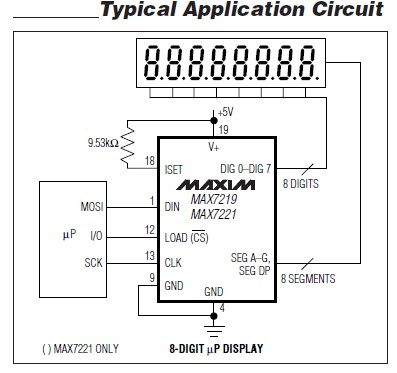

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX7219ENG+ |
Maxim Integrated Products |
LED Display Drivers 8-Digit LED Display Driver |
Data Sheet |
|
|
||||||||||||
