Product Summary
The AD822ARZ is one member of the AD822 series.The AD822 is a dual precision, low power FET input op amp that can operate from a single supply of 3.0 V to 36 V or dual supplies of ±1.5 V to ±18 V. It has true single-supply capability with an input voltage range extending below the negative rail,a llowing the AD822 to accommodate input signals below ground in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: PDIP (N): Observe Derating Curves; SOIC (R): Observe Derating Curves; (3)Input Voltage: (+VS + 0.2 V) to -(20 V + VS); (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: ±30 V; (6)Storage Temperature Range (N): –65℃ to +125℃; (7)Storage Temperature Range (R, RM): –65℃ to +150℃; (8)Operating Temperature Range AD822 A Grade and B Grade: –40℃ to +85℃; (9)Lead Temperature Range (Soldering, 60 sec): 260℃.
Features
Features:(1)output swings rail-to-rail; (2)input voltage range extends below ground; (3)single-supply capability from 3 V to 36 V; (4)dual-supply capability from ±1.5 V to ±18 V; (5)800 μA maximum quiescent current per amplifier ; (6)unity gain bandwidth: 1.8 MHz; (7)Slew rate of 3.0 V/μs; (8)800 μV maximum input offset voltage; (9)2 μV/℃ typical offset voltage drift; (10)25 pA maximum input bias current.

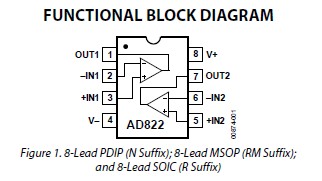

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD822ARZ |
|
IC OPAMP GP R-R 1.9MHZ LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD822ARZ-REEL |
|
IC OPAMP GP R-R 1.9MHZ LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD822ARZ-REEL7 |
|
IC OPAMP GP R-R 1.9MHZ LP 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
